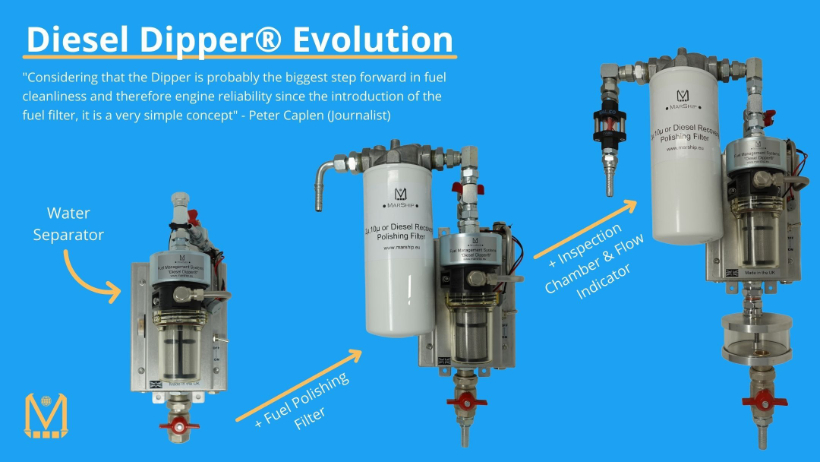

The patented Diesel Dipper, invented and manufactured by us, is a bypass fuel tank cleaner, independent of the engine fuel system. Developed specifically for smaller vessels, yachts, fishing and work boats etc.
Deep sea ships use the same diesel as you but they have a room specifically for fuel purifiers to remove the water.
The Diesel Dipper performes this same function on smaller vessels.

The Dipper starts when the engine starts, it opens a motorised valve and sucks from the very bottom of the fuel tank whilst you are underway, at sea.

When all that water, sludge and diesel bug is sloshing about until it eventually comes into contact with the suction to the dipper, even from behind the baffles (see the demo video). This water and sludge is then easily removed by simply opening the drain cock on the Dipper

I already have a separator?


Good, keep it. But it's designed to protect the engine and has a filter and that's the filter that blocks when all the tank sludge kicks up from the bottom.
The Dipper stops the sludge happening in the first place.


Fuel tanks typically suck from 20mm above the bottom of the tank because the bottom of the tank is where the sludge and water is.
The problem is they don’t give a way of getting it out so it builds up. When you see water/sludge it in your separator you have
a much bigger problem below the suction!
A vessel fitted with a Diesel Dipper clearly shows the owner/operator is serious about maintenance and demonstrates due care in ensuing the fuel tank is kept clean and fit for purpose.
We have seen sales particulars on a boat for sale declaring a Diesel Dipper fitted, that immediately gives confidence to any new owner that you care about maintenance so increasing it's value.
With a 12v DC pump (24v available) and connected to start when the engine is running it will gently suck up everything off the bottom of the tank giving piece of mind that filters will not suddenly block and stop the engine as the boats starts to pitch and roll in the sea.
The top reasons for call outs by the RNLI was engine problems and the top problems amongst those were contaminated fuel and blocked filters
stopping the engine. See this article from PBO
Manufactured from Stainless Steel and fully guaranteed it requires no consumable filters and we were awarded a patent in 2020.
Over 300 sold naionally and internationally.
To isolate the Diesel Dipper from the fuel tank when not running a normally closed automatic motorised valve. is available.
This is simply plugged into the Jack plug socket provided on the Dipper and operates as the Dipper is switched on.

Supplied at a discounted price when orderred with the Dipper.


Diesel Dipper standaard
Diesel Dipper standaard
Diesel Dipper standaard
The bilge pump for fuel tanks.
€1 440,57
Diesel Dipper Purifier
Diesel Dipper Purifier
Diesel Dipper Purifier
The bilge pump for fuel tanks.
€1 832,98
Diesel Dip Tube Flange
Diesel Dip Tube Flange
Diesel Dip Tube Flange
€128,77
Valve Pack for Diesel Dipper
Valve Pack for Diesel Dipper
Valve Pack for Diesel Dipper
€117,61
Inspection Chamber
Inspection Chamber
Inspection Chamber
€394,34
Remote Valve 12 vdc
Remote Valve 12 vdc
Remote Valve 12 vdc
€217,29
Inline Strainer for Diesel Dipper
Inline Strainer for Diesel Dipper
Inline Strainer for Diesel Dipper
€58,81
Drain Alarm
Drain Alarm
Drain Alarm
Dit accessoire waarschuwt u wanneer de Diesel Dipper moet worden leeggemaakt.
€314,62
Visual Flow Indicator
Visual Flow Indicator
Visual Flow Indicator
€160,95
call 0468336907
Diesel Dipper for rent
Diesel Dipper for rent
Diesel Dipper for rent
Rent the bilge pump for fuel tanks for a day
€223,85
Investigate
Diesel Bug Testkit
Diesel Bug Testkit
Diesel Bug Testkit
Marine 16 Diesel Bug Test Kit
€24,79
Sold out
Diesel Duck
Diesel Duck
Diesel Duck
The best diesel dewatering and fuel polishing system on the market
€6 921,15
Out of stock
Purifying Unit for Diesel Dipper®
Purifying Unit for Diesel Dipper®
Purifying Unit for Diesel Dipper®
Take your fuel purification to the next level with this first-rate polishing unit.
€444,24
Cim-Tek Hydrosorb Fuel Filter 70062 (10 micron)
Cim-Tek Hydrosorb Fuel Filter 70062 (10 micron)
Cim-Tek Hydrosorb Fuel Filter 70062 (10 micron)
Cim-Tek 70062 / 260Hs-10 filter element. Cim-Tek filter systems consist of two parts, a static filter adaptor (head) and an inte
€61,17
